Engineered Solution System

Column Jacketing & Structural Rehabilitation

Engineered section enlargement, micro concrete encasements & load recovery

>65 MPa Compressive • Monolithic Bond
Structural Rehabilitation - Certified Engineering Application Protocol
Certified ProtocolIS & ASTM Compliant

What is structural rehabilitation?

Structural rehabilitation strengthens columns, beams and slabs that are weak, damaged or need to carry more load, without demolishing the building. The most common method is jacketing: new steel is fixed around the old member and micro concrete is poured around it in formwork. A structural engineer designs the work; the right chemicals make the new and old concrete act as one.

Last updated:

⚠The Structural Challenge

When does a building need structural rehabilitation?

Ageing structures, additional floor additions, or seismic upgrade mandates require increasing column and beam capacities without demolishing existing load-bearing members.

✓Vchemics Chemical Protocol

How do we fix it?

Engineered RCC jacketing using high-fluidity, shrinkage-compensated micro concrete poured into tight shuttering, effectively restoring and enhancing structural cross-sectional load capacities.

Which products are used?

  • Vchemics High-Flow Micro Concrete
  • Epoxy Anchor & Dowel Mortar
  • Substrate Interfacial Bonding Resin
  • High-Pressure Low-Viscosity Epoxy Injection

Related: Micro concrete for column jacketing · Epoxy grout for dowels and anchors · Column jacketing guide

Where is it used?

  • Column & beam capacity enhancement
  • Heritage structural retrofitting
  • Earthquake / seismic compliance upgrades
  • Industrial frame modernization

Standard Operating Protocol

How is structural rehabilitation done, step by step?

Stage 01

Structural Shoring & Propping

Temporary load relief with certified heavy-duty shoring towers.

Stage 02

Rebar Doweling & Cage Erection

Chemical anchoring of shear studs and additional structural steel cage.

Stage 03

Watertight Formwork Erection

Sturdy formwork designed with hopper ports for gravity micro concrete head.

Stage 04

Micro Concrete Placement

Continuous pouring of self-compacting micro concrete with zero vibration.

Site Execution Gallery

How We Worked

Step-by-step photographic breakdown of real-world site execution, obstacles managed, and progressive structural sealing.

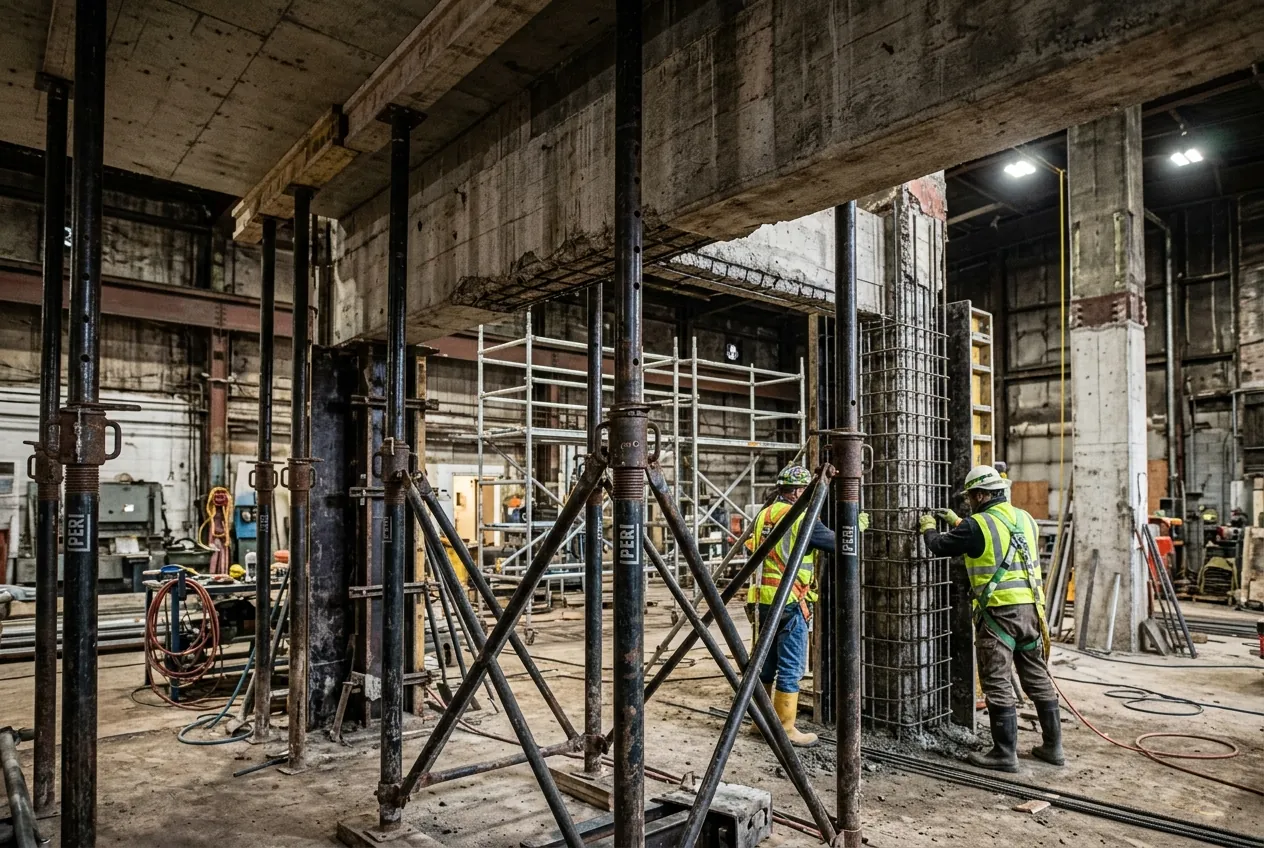

Heavy-duty steel shoring props and jack towers supporting a concrete beam and slab on site
Step 01

Heavy-duty steel shoring props and jack towers supporting a concrete beam and slab on site

Step 01 of 05

Temporary Shoring & Load Relief

Heavy-duty hydraulic props and shoring towers installed around the damaged RCC column to safely relieve live and dead loads during structural restoration.

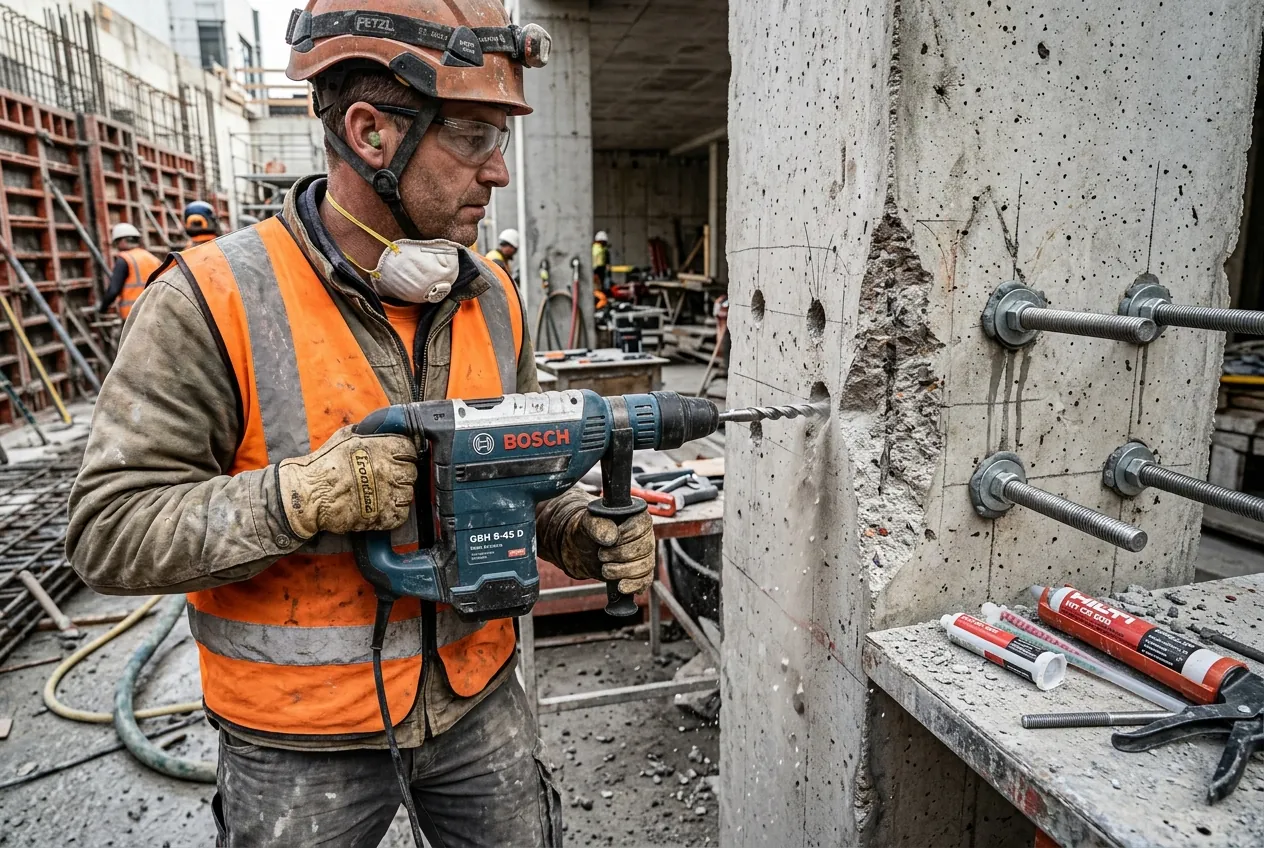

Worker drilling anchor holes and installing chemical epoxy rebar dowels on a concrete column
Step 02

Worker drilling anchor holes and installing chemical epoxy rebar dowels on a concrete column

Step 02 of 05

Surface Chipping & Rebar Chemical Doweling

Deteriorated concrete chipped away to expose sound core, followed by precision drilling and chemical epoxy anchoring of high-yield steel shear dowels.

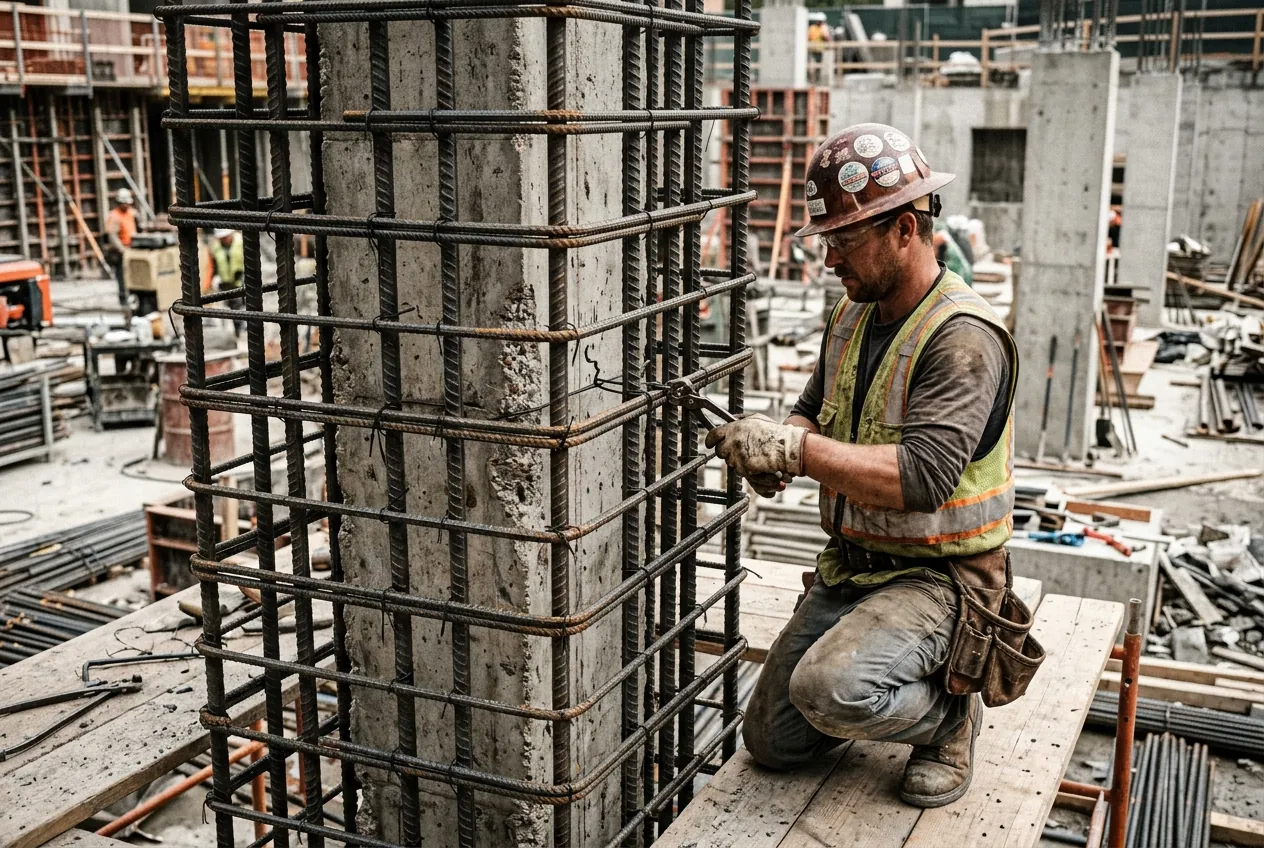

Ironworker assembling and tying a dense steel reinforcement cage around a concrete column
Step 03

Ironworker assembling and tying a dense steel reinforcement cage around a concrete column

Step 03 of 05

Rebar Encasement Cage Assembly

A supplementary high-tensile steel reinforcement cage and confinement stirrups erected around the column, engineered to expand cross-sectional load capacity.

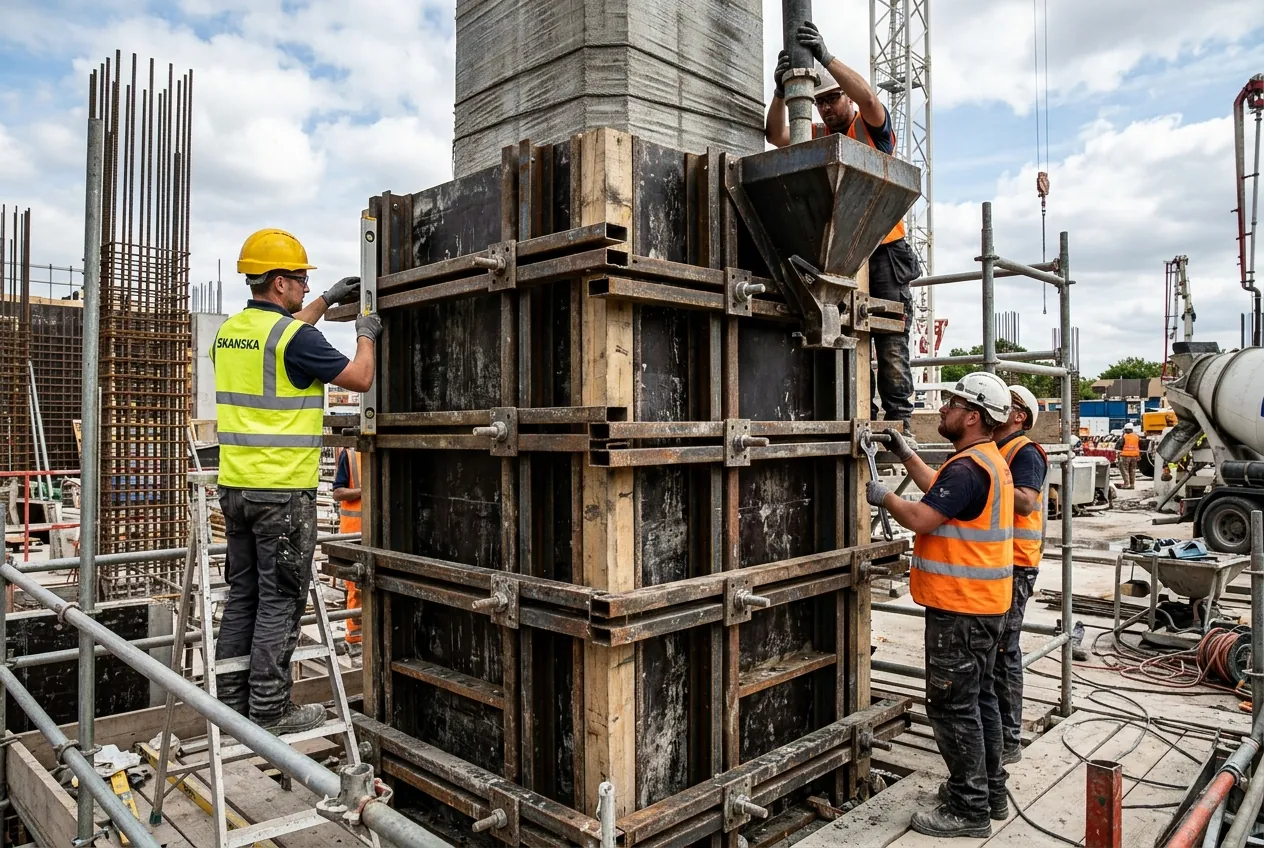

Watertight formwork shuttering with top funnel hopper erected around a reinforced column
Step 04

Watertight formwork shuttering with top funnel hopper erected around a reinforced column

Step 04 of 05

Watertight Shuttering with Pouring Hoppers

Precision watertight formwork assembled around the column with hopper funnels at the top to create gravity head pressure for complete encasement.

Completed enlarged concrete jacketed column structurally restored after formwork striking
Step 05

Completed enlarged concrete jacketed column structurally restored after formwork striking

Step 05 of 05

Micro Concrete Placement & Formwork Striking

Free-flowing, non-shrink micro concrete poured into the jacket without vibration, achieving monolithic structural bonding (>65 MPa) once formwork is struck.
